CKE1350G

Main Specifications (Model: CKE1350G-2)

Crane Boom

Max. Lifting Capacity*** 150 t × 4.4 m
Max. Length 76.2 m

Fixed Jib

Max. Lifting Capacity 26.8 t × 16.0 m
Max. Combination 61.0 m + 30.5 m

Long Boom

Max. Lifting Capacity 44.3 t / 10.6 m
Max. Length 82.3 m

Luffing Boom

Max. Lifting Capacity 80 t / 8.0 m
Max. Length 47.9 m

Luffing Jib

Max. Jib Length 53.3 m
Max. Combination 44.8 m + 53.3 m
47.9 m + 32.0 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull
(Single Line)
132 kN {13.5 tf}
Wire Rope Diameter 26 mm × 275 m
Wire Rope Length 275 m (Main)
255 m (Aux.)
Brake Type Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 2.1 min-1 {rpm}
Travel Speed 1.3 / 0.9 km/h

Power Plant

Model HINO P11C-VN
Engine Output 271 kW / 1,850 min-1 {rpm}
Fuel Tank Capacity 400 L

Hydraulic System

Main Pumps 3 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 535 L

Self-Removal Device

Counterweight/crawler self-removal device (Standard)

Weight

Operating Weight* 137 t
Ground Pressure 107 kPa
Counterweight 55,000 kg
Transport Weight** 31,980 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* Including upper and lower machine, 55.0 ton counterweight, 10.8 ton carbody weight, basic boom, hook, and other accessories.
** Base Machine with gantry, wire ropes (front/rear/boom hoist)
*** Auxiliary sheave is must.

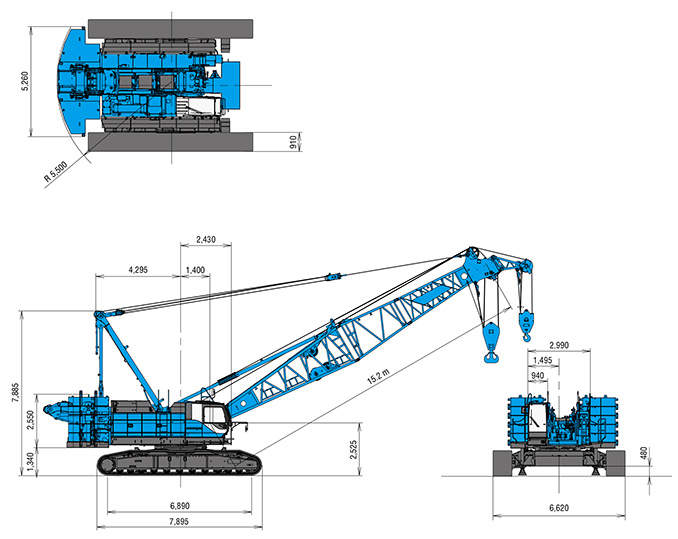

General Dimensions

CKE1350G

Unit : mm
