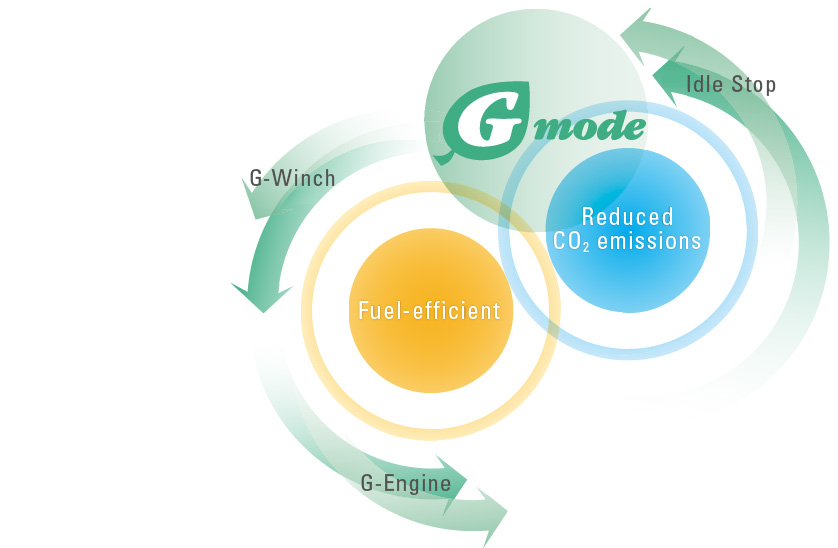

The Beginning of a Cycle That Contributes to the Environment

We have raised the standards created for the environment by re-examining the energy we consume. Eliminating needless operations and innovating engine functions allowed us to reduce fuel consumption and transformed the mechanisms that move the crane into a cycle that benets the environment.

  • A
  • An Idle Stop Function for Eco-driving.
  • Performance That Complies with Many Different Environmental Standards.
  • A New Clean Diesel System / Exhaust-cleaning SCR & DPF
  • A super-fine Filter
  • Bio Oil provides environment friendly solution.
Play Movie (5.6MB) Next

Unparalleled efficiency that will revolutionize transport

Our efforts to transform thinking about transporting equipment have resulted in greater efficiency in every possible area. We designed the CKE-G series, BME-G series to require less work and to be easier to transport, and to ensure safety during assembly and disassembly. What's more, simpler, more efficient loading for transport have reduced the cost of both transport and storage.　

CKE800G-2 Weight : 26,660kg Width : 2,990mm CKE2500G-2 Weight : 44,570kg　Width：2,900mm

Six Major Attachments That Make Transport & Assembly More Efficient

  • A "nested boom" that is easy to transport efficiently
  • A "boom connector pin holder" that prevents losses during assembly and disassembly
  • A folding "Axle extension adapter"
  • "Guy cable Stowing brackets" that can be securely fastened
  • Easy to attach, easy to remove "side steps"
  • Insert boom handling lugs make assembly work easy and safe
Play Movie (3.8MB) Next

Delivering Comfort and Peace of Mind

The design of the CKE-G series, BME-G series represents a new approach to safety and the human senses. Together with improved safety, the layout of the cab space offers heightened levels of comfort and ease of use. What's more, consideration for safety permeates throughout the entire design, all with the aim of preventing accidents.

Next
Model CKE800G-2 CKE900G-2 CKE1100G-2
CKE800G-3 CKE800G-2 CKE900G-3 CKE900G-2 CKE1100G-3 CKE1100G-2
Max. Lifting Capacity 80 t × 3.0 m 90 t × 3.9 m 110 t × 3.6 m
Max. Boom Length 54.9 m 61.0 m 70.1 m
Max. Fixed Jib Combination 42.7 m + 18.3 m, 45.7 m + 12.2 m 51.8 m + 18.3 m 61.0 m + 21.3 m
Max. Luffing Jib Combination NA NA NA
Engine Ⅴ Ⅳ Ⅴ Ⅳ Ⅴ Ⅳ
Product Page Link Link Link Link Link Link
Concept Catalog Download Download PDF(5.7MB) Download PDF(10.7MB) Download PDF(5.7MB) Download PDF(10.7MB) Download PDF(5.7MB) Download PDF(10.7MB)
Spec Catalog Download Download PDF(3.7MB) Download PDF(3.8MB) Download PDF(4.0MB) Download PDF(3.8MB) Download PDF(4.0MB) Download PDF(4.9MB)
Model CKE1350G-2 CKE2500G-2 BME800G
CKE1350G-2 CKE2500G-2 BME800G-2
Max. Lifting Capacity 150 t × 4.4 m 250 t × 4.6 m 80 t × 3.6 m
Max. Boom Length 76.2 m 91.4 m 54.9 m
Max. Fixed Jib Combination 61.0 m + 30.5 m 76.2 m + 30.5 m NA
Max. Luffing Jib Combination 44.8 m + 53.3 m, 47.9 m + 32.0 m 61.0 m + 61.0 m NA
Engine Ⅳ Ⅳ Ⅳ
Product Page Link Link Link
Concept Catalog Download Download PDF(5.7MB) Download PDF(5.7MB) Download PDF(5.7MB)
Spec Catalog Download Download PDF(6.0MB) Download PDF(25.8MB) Download PDF(2.9MB)
