| HL Mast | STD | - |
|---|---|---|
| HL | 98 ft | |
| SHL | 98 ft | |
| Additional Weight | STD | - |
| HL | - | |
| SHL | ~ 551,110 lbs |
| Max. Lifting Capacity | STD | 992,000 lbs 21.9 ft |
|---|---|---|
| HL | 815,600 lbs 27.2 ft |
|
| SHL | 1,212,500 lbs 27.2 ft |
|
| Length | STD | 79 ~ 276 ft |
| HL | 118 ~ 276 ft | |
| SHL | 118 ~ 276 ft |
| Max. Lifting Capacity | STD | 661,300 lbs 32 ft |
|---|---|---|
| HL | 661,300 lbs 28 ft |
|
| SHL | 661,300 lbs 65 ft |
|
| Length | STD | 98 ~ 276 ft |
| HL | 118 ~ 276 ft | |
| SHL | 118 ~ 276 ft |
| Max. Lifting Capacity | STD | 216,000 lbs 55 ft |
|---|---|---|
| HL | 216,000 lbs 65 ft |
|
| SHL | 216,000 lbs 95 ft |
|
| Length | STD | 295 ~ 354 ft |
| HL | 295 ~ 354 ft | |
| SHL | 295 ~ 413 ft |
| Type | STD | Type A |
|---|---|---|
| HL | Type B | |
| SHL | Type B2 | |
| Max. Lifting Capacity | STD | 231,500 lbs 65 ft |
| HL | 264,600 lbs 65 ft |
|
| SHL | 264,600 lbs 65.7 ft |
|
| Max. Combination(Boom) | STD | 256 ft |
| HL | 256 ft | |
| SHL | 256 ft | |
| Max. Combination(Jib) | STD | 59 ft |
| HL | 59 ft | |
| SHL | 59 ft |
| Max. Lifting Capacity | STD | 395,200 lbs 50 ft |
|---|---|---|
| HL | 440,900 lbs 47.2 ft |
|
| SHL | 440,900 lbs 47.2 ft |
|
| Max. Combination(Boom) | STD | 98 ~ 197 ft |
| HL | 118 ~ 217 ft | |
| SHL | 118 ~ 276 ft | |
| Max. Combination(Jib) | STD | 79 ~ 236 ft |
| HL | 79 ~ 236 ft | |
| SHL | 79 ~ 276 ft | |
| Luffing Angle | 66° ~ 86° | |
| Model | HINO E13C-VV |
|---|---|
| Engine Output | 448 PS / 1,800 rpm |
| Fuel Tank Capacity | 158 US gal |
| Max. Line Speed | 360 to 10 ft (1st layer) |
|---|---|
| Rated Line Pull (Single line) | 30,864 lbs |
| Wire Rope Diameter | 28 mm (inch) |
| Wire Rope Length | 2,723 ft |
| Swing Speed | 0.9 rpm {min-1} |
|---|---|
| Travel Speed | 0.62 / 0.4 miles |
| Pumps | 7 variable displacement |
|---|---|
| Max. Pressure | 4,620 psi |
| Hydraulic Tank Capacity | 188 US gal |
| Working Weight* | Approx. 979,000 lbs* |
|---|---|
| Ground Pressure* | 20.7 psi* |
| Counterweight | Upper : 441,000 lbs |
| Carbody Weight : 110,000 lbs |
* Including base machine, counterweights = 440,900 lbs, carbody weights = 111,200 lbs, 79 ft boom with heavy boom tip and 992,000 lbs hook block.
Not include quick connection device and upper translifter.

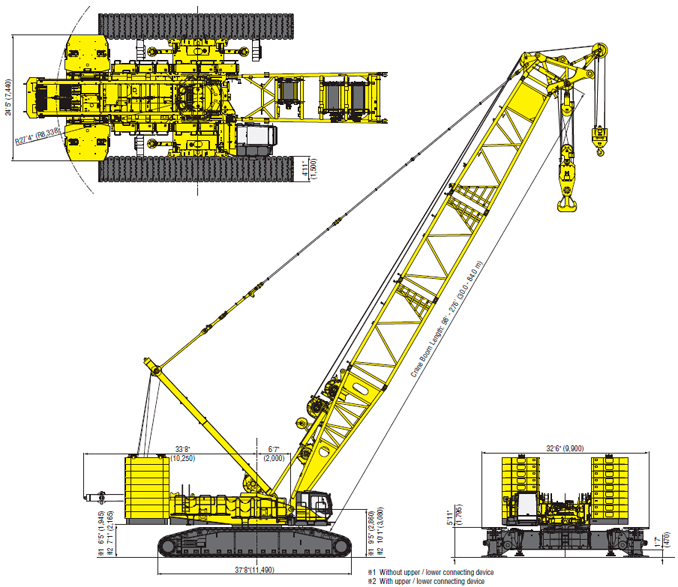

Unit : mm
