Other Area (All Line Up) CKE900G

CKE900G

Main Specifications (Model: CKE900G-3)

Crane Boom

Max. Lifting Capacity* 90 t × 3.9 m
Max. Length 61.0 m

Fixed Jib

Max. Lifting Capacity 10.9 t × 18.0 m
Max. Combination 51.8 m + 18.3 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull (Single Line) 112 kN {11.4 tf}
Wire Rope Diameter 26 mm
Wire Rope Length 240 m (Main), 165 m (Aux)
Brake Type (free fall) Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 4.0 min-1 {rpm}
Travel Speed 1.7 / 1.1 km/h

Power Plant

Model HINO J08E-YD
Engine Output 213 kW / 2,100 min-1
Fuel Tank Capacity 400 liters

Hydraulic System

Main Pumps 3 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 435 liters

Self-Removal Device

counterweight self-removal device (Option)

Weight

Operating Weight 90.0 t
Ground Pressure 101.5 kPa
Counterweight** 31,900 kg
Transport Weight*** 41,350 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* Auxiliary sheave is necessary.
** With optional counterweights.
*** Base machine with boom base, gantry, crawler, wire ropes (front/rear/boom hoist), step.

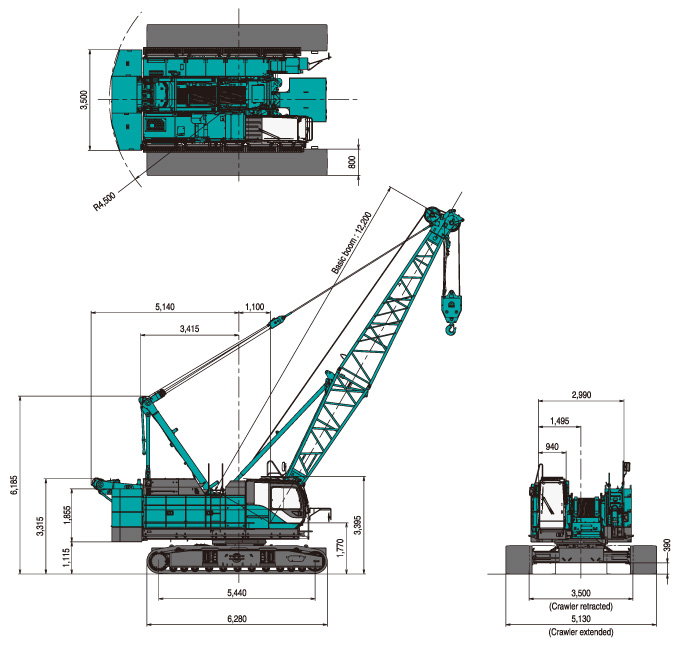

General Dimensions

CKE900G

Unit : mm
