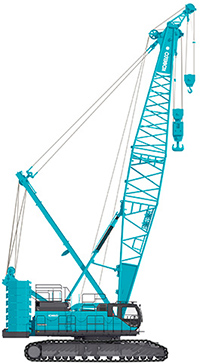

Other Area (All Line Up) CKE2500G


Main Specifications (Model: CKE2500G-2)

Crane Boom

Max. Lifting Capacity 250 t × 4.6 m
Max. Length 91.4 m

Fixed Jib

Max. Lifting Capacity 27.0 t × 10.4 m
Max. Combination 76.2 m + 30.5 m

Long Boom

Max. Lifting Capacity 47.1 t × 12.8 m
Max. Length 91.4 m

Luffing Boom

Max. Lifting Capacity 150 t × 7.0 m
Max. Length 61.0 m

Luffing Jib

Max. Jib Length 61.0 m
Max. Combination 61.0 m + 61.0 m

Main & Aux. Winch

Max. Line Speed 110 m/min (1st layer)
Rated Line Pull (Single Line) 132 kN {13.5 tf}
Wire Rope Diameter 26 mm × 460 m
Wire Rope Length 480 m (Main)
390 m (Aux.)
Brake Type Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 2.2 min-1 {rpm}
Travel Speed 1.0 / 0.5 km/h

Power Plant

Model HINO P11C-VN
Engine Output 271 kW / 1850 min-1
Fuel Tank Capacity 400 liters

Hydraulic System

Main Pumps 4 variable displacement
Max. Pressure 32 MPa
{326 kgf/cm2}
Hydraulic Tank Capacity 650 liters

Self-Removal Device

Counterweight/crawler self-removal device (Standard)


Operating Weight*1 220 t
Ground Pressure 112 kPa
Counterweight 90,400 kg
Transport Weight 43,980 kg*2 or 44,570 kg*3

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
*1 Including upper and lower machine, 90.4 ton counterweight, 27.5 ton carbody weight, basic boom, hook, and other accessories.
*2 Base Machine with gantry, mast, wire ropes (front/rear/boom hoist), without translifter.
*3 Base Machine with gantry, mast, wire ropes (front/boom hoist) with translifter.

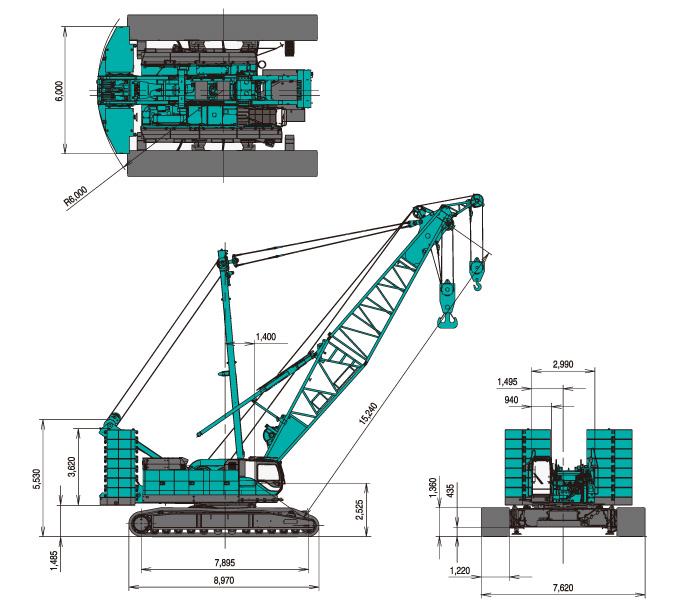

General Dimensions


Unit : mm
