Other Area (All Line Up) (Conventional model) CKE1100G

CKE1100G

Main Specifications (Model: CKE1100G-2)

Crane Boom

Max. Lifting Capacity*** 110 t × 3.6 m
Max. Length 70.1 m

Fixed Jib

Max. Lifting Capacity 10.9 t × 22.0 m
Max. Combination 61.0 m + 21.3 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull
(Single Line)
108 kN {11.0 tf}
Wire Rope Diameter 26 mm × 265 m
Wire Rope Length 265 m (Main), 235 m (Aux.)
Brake Type Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 3.2 min-1 {rpm}
Travel Speed 1.4 / 1.0 km/h

Power Plant

Model HINO J08E-VV
Engine Output 213 kW / 2,100 min-1 {rpm}
Fuel Tank Capacity 400 L

Hydraulic System

Main Pumps 4 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 535 L

Self-Removal Device

counterweight/crawler self-removal device (Standard)

Weight

Operating Weight* 102.1 t
Ground Pressure 95.9 kPa
Counterweight 34,600 kg
Transport Weight** 59,305 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* Including upper and lower machine, 34.6 ton counterweight, 6.5 ton carbody weight, basic boom, hook, and other accessories.
** Base machine with boom base, gantry, crawlers, and wire ropes (front/boom hoist)
*** Auxiliary sheave is must.

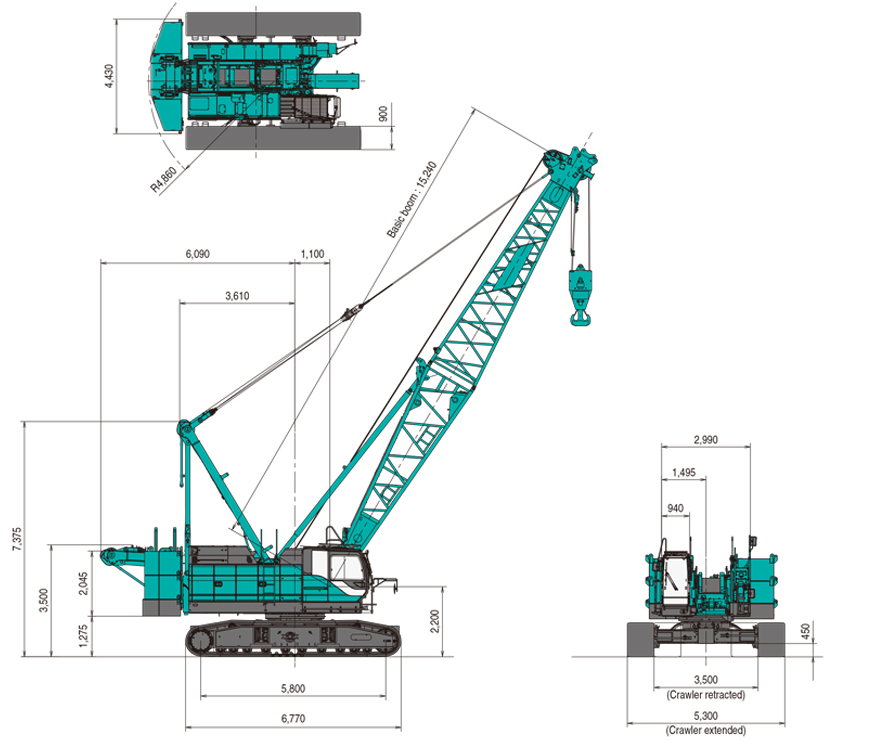

General Dimensions

CKE1100G

Unit : mm
