Other Area (All Lineup)(Conventional model) BME800G


Main Specifications (Model: BME800G-2)

Crane Boom

Max. Lifting Capacity 80 t × 3.6 m
Max. Length 54.9 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull
(Single Line)
108 kN {11.0 tf}
Wire Rope Diameter 26 mm × 175 m
Wire Rope Length 175 m (Main), 130 m (Aux.)
Brake Type Wet-type multiple disc brake (Standard)

Working Speed

Swing Speed 4.0 min-1 {rpm}
Travel Speed 1.7 / 1.2 km/h

Power Plant

Model HINO P11C-VN
Engine Output 271 kW / 1,850 min-1 {rpm}
Fuel Tank Capacity 400 L

Hydraulic System

Main Pumps 3 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Oil Quantity (at the reference level) 375 L

Self-Removal Device

Counterweight/crawler self-removal device (Option)


Operating Weight* 77.3 t
Ground Pressure 87.2 kPa
Counterweight 25,400 kg
Transport Weight** 41,700 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* Including upper and lower machine, 25.4 ton counterweight, 6.5 ton carbody weight, basic boom, hook, and other accessories.
** Base machine with boom base, gantry, crawlers, and wire ropes (front/rear/boom hoist)

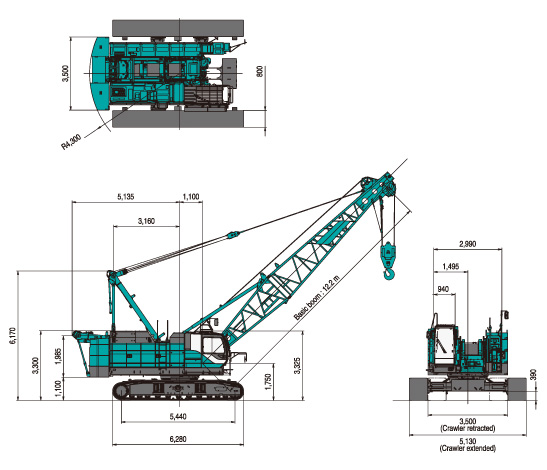

General Dimensions


Unit : mm
