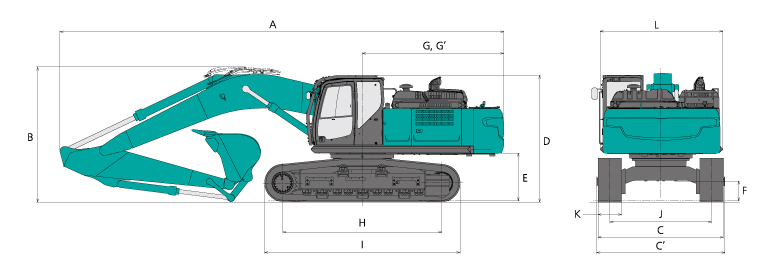

Unit : mm
| Arm length | Short 2.60 m |
Standard 3.30 m |
|||
|---|---|---|---|---|---|
| A | Overall length | 11,380 | 11,300 | ||
| B | Overall height (to top of boom) | 3,690 | 3,440 | ||
| C | Overall width of crawler (without steps) | 3,190 | |||
| C' | Overall width of crawler (with steps) | 3,260 | |||
| D | Overall height (to top of cab) | 3,230 | |||
| E | Ground clearance of rear end* | 1,210 | |||
| F | Ground clearance* | 500 | |||
| G | Tail swing radius | 3,600 | |||
| G' | Distance from centre of swing to rear end | 3,600 | |||
| H | Tumbler distance | 4,050 | |||
| I | Overall length of crawler | 4,980 | |||
| J | Track gauge | 2,590 | |||
| K | Shoe width | 600 | |||
| L | Overall width of upperstructure | 3,120 | |||
* Without including height of shoe
| Model Name | SK380XDLC |
|---|---|
| Machine Type | SK380XDLC-11E |
| Model | ISUZU 6HK1 | |
|---|---|---|
| Type | Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler complies with EU Stage V exhaust emission regulation | |
| Rated power output | kW/min-1 | 198 / 1,900 (ISO 9249) 210 / 1,900 (ISO 14396) |
| Hydraulic oil tank | L | Tank level 245 / System 410 | |
|---|---|---|---|
| Pump | Type | Axial piston pumps + pilot gear pump | |
| Max. discharge flow | L/min | 2 x 294, 1 x 19 | |
| Swing speed | min-1 | 10.0 |
|---|
| Travel speed | km/h | 5.6 / 3.3 |
|---|---|---|
| Rated drawbar pull | kN | 319 (ISO 7464) |
| Gradeability | % ( º ) | 70 (35) |
| Travel shoes | 48 each side | |
| Travel motors | 2 x axial-piston, two-step motors | |
| Fuel tank | L | 503 |
|---|
| Use | Backhoe bucket | |||
|---|---|---|---|---|
| Normal digging | ||||
| Bucket capacity | ISO heaped | m3 | 1.60 | 1.90 |
| Opening width | With side cutters | mm | 1,470 | 1,740 |
| Without side cutters | mm | 1,470 | 1,740 | |
| Operating weight | kg | 39,500 |
|---|

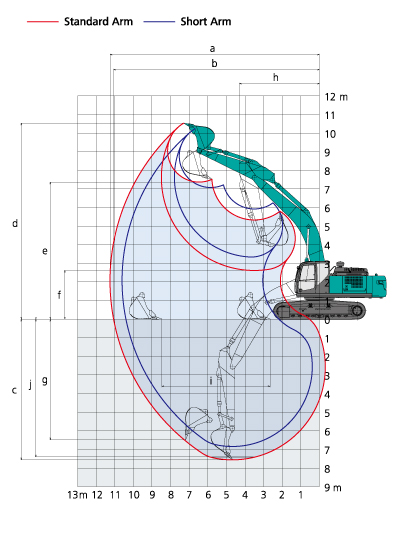

Unit : mm
| Boom | 6.50 m | |||
|---|---|---|---|---|
| Range / Arm | Short 2.60 m |
Standard 3.30 m |
||
| a | Max. digging reach | 10,610 | 11,260 | |
| b | Max. digging reach at ground level | 10,400 | 11,060 | |
| c | Max. digging depth | 6,840 | 7,560 | |
| d | Max. digging height | 10,230 | 10,540 | |
| e | Max. dumping clearance | 7,070 | 7,370 | |
| f | Min. dumping clearance | 3,340 | 2,620 | |
| g | Max. vertical wall digging depth | 5,700 | 6,480 | |
| h | Min. swing radius | 4,460 | 4,310 | |
| i | Horizontal digging stroke at ground level | 4,210 | 5,820 | |
| j | Digging depth for 2.4m (8') flat bottom | 6,650 | 7,400 | |
| Bucket capacity ISO heaped | m3 | 1.90 | 1.60 | |
| Digging Force (ISO 6015) | Unit : kN |
| Arm length | Short 2.60 m |
Standard 3.30 m |
|---|---|---|
| Bucket digging force |
229 252* |
229 252* |
| Arm crowding force |
207 228* |
165 182* |
* Power Boost engaged.
