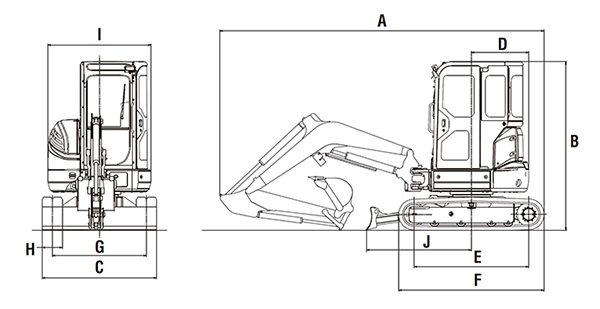

Unit : mm
| Arm length |
1.32m |
| A |
Overall length |
4,730 |
| B |
Overall height |
2,510 |
| C |
Overall width |
1,550 |
| D |
Tail swing radius |
775 |
| E |
Tumbler distance |
1,700 |
| F |
Overall length of crawler |
2,160 |
| G |
Track gauge |
1,250 |
| H |
Shoe width |
300 |
| I |
Overall width of upperstructure |
1,530 |
| J |
Distance from dozer top to center of upperstructure |
1,560 |

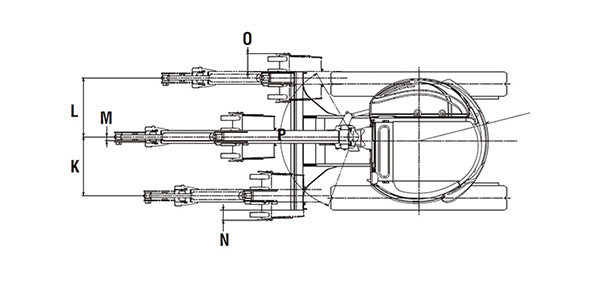

| K |
720 |
| L |
725 |
| M |
50 |
| N |
150 |
| O |
250 |
| P |
70°/60° |
| Machine Name |
SK30SR |
| Machine Type |
SK30SR-6 |
| Model |
YANMAR 3TNV82A-B |
| Type |
Water cooled, 4-cycle, 3-cylinder,direct injection, diesel engine |
| Rated power output |
kW/min-1 |
17.1 / 2,400 (ISO 9249)
18.1 / 2,400 (ISO 14396) |
| Hydraulic Oil Tank (system) |
L |
20.4 (44.8) |
| Pump |
Type |
Two variable displacement pumps + One gear pump |
| Max.Discharge flow |
L/min |
2 x 38.4, 1 x 19.2 |
| Swing speed |
min-1 |
8.4 |
| Swing motors |
Axial piston motor |
| Travel Speed |
km/h |
4.4 / 2.5 |
| Track shoe |
mm |
300 |
| Track shoes |
Rubber |
| Travel motors |
2 x axial-piston, two-step motors |
| Width x Height |
mm |
1,550 x 345 |
| Working ranges (height / depth) |
mm |
395 / 320 |
| Type |
Boom swing |
| Pump |
to the left |
degree |
70 |
| to the right |
degree |
60 |
| Bucket capacity |
m3 |
0.09 |
| Bucket Width (with side cutter) |
mm |
500 |
| Machine Mass (canopy / cab) |
kg |
3,210 / 3,380 |
| Ground Pressure (canopy / cab) |
kPa |
28.6 / 30.1 |

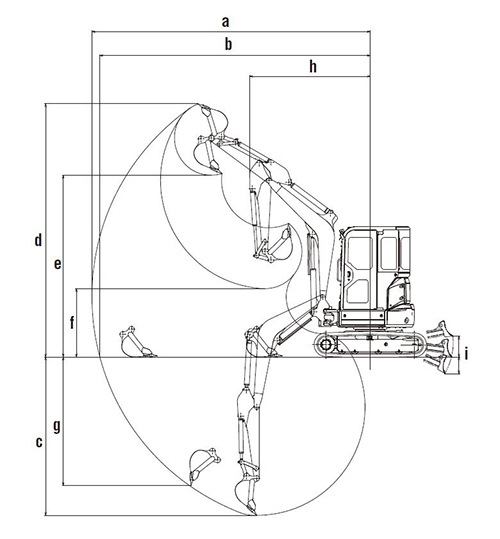

Unit : mm
| Arm length |
1.32 m |
| a |
Max. digging reach |
5,200 |
| b |
Max. digging reach at ground level |
5,040 |
| c |
Max. digging depth |
2,820 |
| d |
Max. digging height |
4,800 |
| e |
Max. dumping clearance |
3,420 |
| f |
Min. dumping clearance |
1,300 |
| g |
Max. vertical wall digging depth |
2,360 |
| h |
Min. swing radius |
2,300 |
| i |
Dozer blade (height / depth) |
395 / 320 |
