Other Area (All Line Up) SL4500G Standard Configuration

SL4500G Standard Configuration

Main Specifications (Model: SL4500G Standard Configuration)

Lift Enhancer

HL Mast STD -
HL 98 ft
SHL 98 ft
Additional Weight STD -
HL -
SHL ~ 551,110 lbs

Luffing Boom

Max. Lifting Capacity STD 881,800 lbs
18 ft
HL 831,100 lbs
22.3 ft
SHL 831,100 lbs
38 ft
Length STD 79 ~ 256 ft
HL 98 ~ 276 ft
SHL 98 ~ 276 ft

Long Boom

Max. Lifting Capacity 250,200 lbs
Length 197 ~ 315 ft

Luffing Jib

Max. Lifting Capacity STD 250,200 lbs
HL 250,200 lbs
SHL 250,200 lbs
Boom Length (Min~max) STD 79 ~ 217 ft (236 ft)
HL 98 ~ 236 ft (256 ft)
SHL 98 ~ 256 ft (276 ft)
Jib Length (Min~max) 79 ~ 217 ft (177 ft)
Luffing Angle 66° ~ 86°

Power Plant

Model HINO E13C-VV
Engine Output 448 PS / 1,800 rpm
Fuel Tank Capacity 158 US gal.

Hoist Winch (H1,H2)

Max. Line Speed 360 ft / min (1st layer)
Rated Line Pull (Single line) 29,761 lbs (132 kN)
Wire Rope Diameter 28 mm

Working Speed

Swing 1.2 rpm (1.2 min-1)
Travel 0.62 / 0.4 miles

Hydraulic System

Pumps 7 variable displacement
Max. Pressure 4,620 psi
Hydraulic Tank Capacity 88 US gal

Weight

Working Weight* 910,000 lbs
Ground Pressure* 24.8 psi
Counterweight Upper: 353,000 lbs
Lower: 112,000 lbs

* Including base machine, counterweights (353,000 lbs), carbody weights (112,000 lbs), crawler weight(44,000 lbs), 79 ft Luffing boom and 400 metric ton hook block.
Not include quick connection device and uppertranslifter.

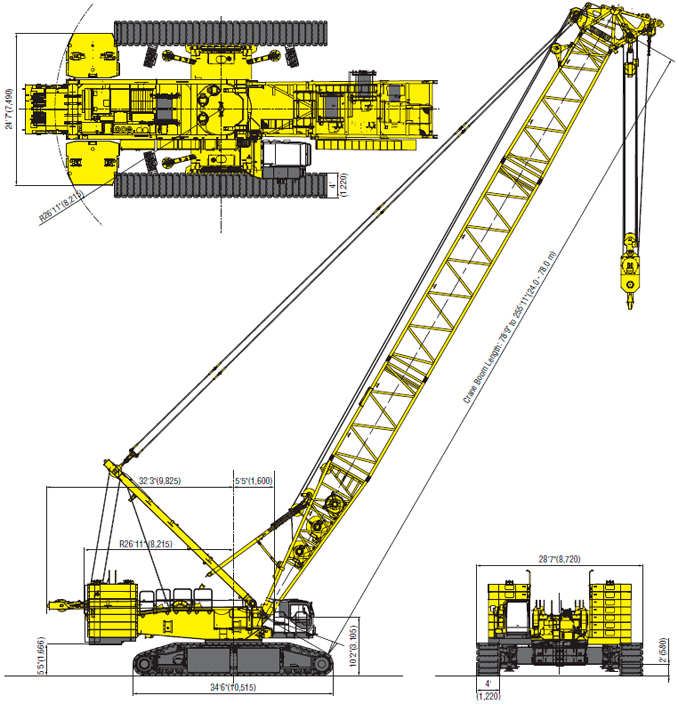

General Dimensions

SL4500G Standard Configuration

Unit : mm
