Other Area (All Line Up) SL4500G Standard Configuration

SL4500G Standard Configuration

Main Specifications (Model: SL4500G Standard Configuration)

Lift Enhancer

HL Mast STD -
HL 30 m
SHL 30 m
Additional Weight STD -
HL -
SHL ~ 250 t

Luffing Boom

Max. Lifting Capacity STD 400t
5.5 m
HL 377 t
7.0 m
SHL 377 t
12.0 m
Length STD 24 ~ 78 m
HL 30 ~ 84 m
SHL 30 ~ 84 m

Long Boom

Max. Lifting Capacity 113.5 t
Length 60 ~ 96 m

Luffing Jib

Max. Lifting Capacity 113.5 t
Boom Length (Min~max) STD 24 ~ 66 m
HL 30 ~ 72 m
SHL 30 ~ 78 m
Jib Length (Min~max) 24 ~ 66 m
Luffing Angle 66° ~ 86°

Power Plant

Model HINO E13C-VV
Engine Output 320 kW / 2,000 min-1 {rpm}
Fuel Tank Capacity 600 liters

Hoist Winch (H1,H2)

Max. Line Speed 110 m/min (1st layer)
Rated Line Pull (Single line) 137 kN {13.5 tf}
Wire Rope Diameter 28 mm

Working Speed

Swing 1.2 min-1 {rpm}
Travel 1.0 / 0.6 km/h

Hydraulic System

Pumps 6 variable displacement
Max. Pressure 32.0 mpa {326 kgf/cm2}
Hydraulic Tank Capacity 710 liters

Weight

Operating Weight* Approx. 413 t
Ground Pressure* 178 kPa {1.8 kgf/cm2}
Counterweight Upper: 160 metric tons
Lower: 51 metric tons

Units are SI units. { } indicates conventional units.
* Including base machine, counterweights (= 160 t), carbody weights (= 51 t), crawler weight(= 20 t), 24 m luffing boom and 400 t hook block.
Not include quick connection device and uppertranslifter.

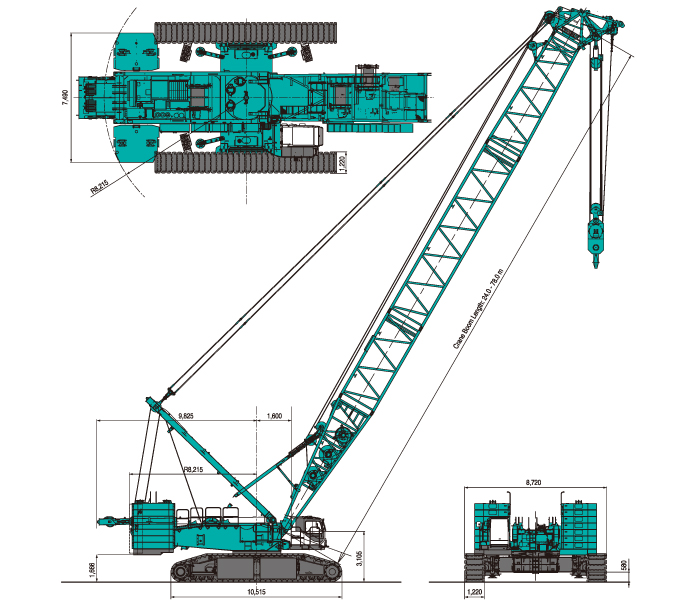

General Dimensions

SL4500G Standard Configuration

Unit : mm
