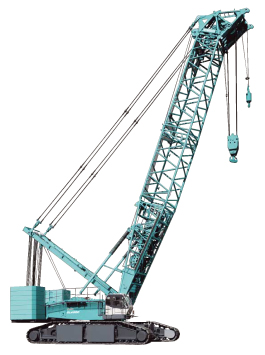

| HL Mast |
STD |
- |
| HL |
30 m |
| SHL |
30 m |
| Additional Weight |
STD |
- |
| HL |
- |
| SHL |
~ 250 t |
| Max. Lifting Capacity |
STD |
400 t × 5.5 m |
| HL |
377 t × 7.0 m |
| SHL |
377 t × 12.0 m |
| Length |
STD |
24 ~ 78 m |
| HL |
30 ~ 84 m |
| SHL |
30 ~ 84 m |
| Max. Lifting Capacity |
113.5 t × 10 ｍ |
| Length |
60 ~ 96 m |
| Max. Lifting Capacity |
113.5 t × 16.0 ｍ |

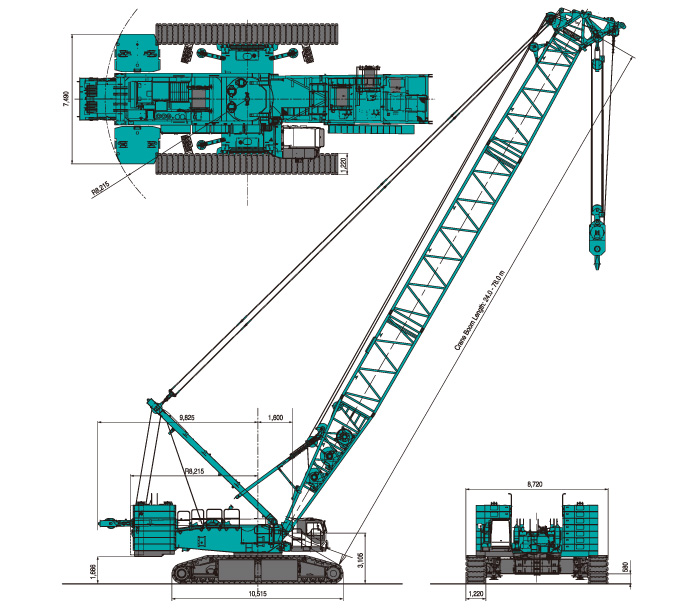

| Boom Length (Min~max) |
STD |
24 ~ 66 m (72 m) |
| HL |
30 ~ 72 m (78 m) |
| SHL |
30 ~ 78 m (84 m) |
| Jib Length (Min~max) |
STD |
24 ~ 66 m (54 m) |
| HL |
24 ~ 66 m (54 m) |
| SHL |
24 ~ 66 m (54 m) |
| Luffing Angle |
66° ~ 86° |
| Model |
HINO E13C-WY |
| Engine Output |
330 kW / 1,800 min-1 {rpm} |
| Fuel Tank Capacity |
600 L |
| Max. Line Speed |
110 m/min (1st layer) |
| Rated Line Pull (Single line) |
132 kN {13.5 tf} |
| Wire Rope Diameter |
28 mm |
| Swing |
1.2 min-1 {rpm} |
| Travel |
1.0 / 0.6 km/h |
| Pumps |
7 variable displacement |
| Max. Pressure |
32.0 mpa {326 kgf/cm2} |
| Oil Quantity (at the reference level) |
710 L |
| Operating Weight* |
Approx. 413 t |
| Ground Pressure* |
178 kPa {1.8 kgf/cm2} |
| Counterweight |
Upper: 160 t
Lower: 51 t + 20 t |
Units are SI units. { } indicates conventional units.
* Including base machine, counterweights (= 160 t), carbody weights (= 51 t), crawler weight(= 20 t), 24 m luffing boom and 400 t hook block.
Not include quick connection device and uppertranslifter.
