| Model Name |
SK17SR |
| Machine Type |
SK17SR-6 |
| Model |
Yanmar 3TNV70-XBV |
| Type |
Water cooled, 4-cycle, 3-cylinder |
| Power Output NET |
kW/min-1 |
10.1 / 2,200 (ISO 9249) |
| Hydraulic Oil Tank (system) |
L |
16.5 (26) |
| Pump |
Type |
Two variable displacement pumps
+ two gear pumps (one for pilot pump) |
| Max. discharge flow |
L/min |
2 x 17.6, 1 x 13.2, 1 x 7.9 |
| Travel speed |
km/h |
4.2 / 2.1 |
| Track shoe |
mm |
230 |
| Track shoes |
Rubber |

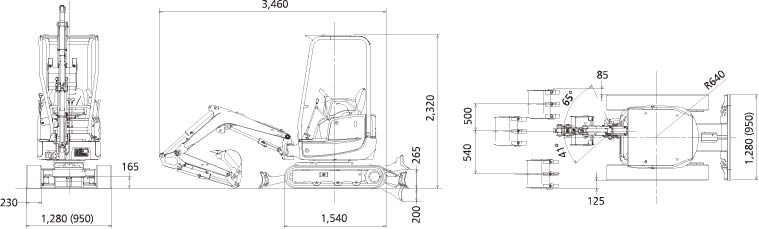

| Width x Height |
mm |
1,280 x 250 |
| Working Ranges (height / depth) |
mm |
265 / 200 |
| Machine Mass |
kg |
1,710 |
| Ground Pressure |
kPa |
29 |

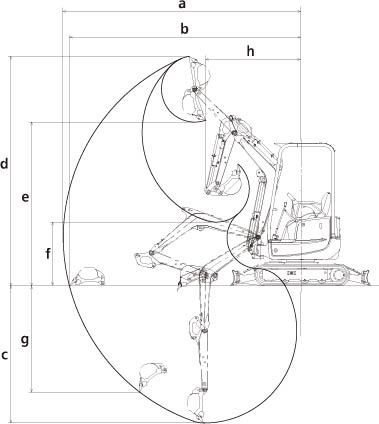

Unit : mm
| Model |
SK17SR |
| a |
Max. digging reach |
3,820 |
| b |
Max. digging reach at ground level |
3,730 |
| c |
Max. digging depth |
2,210 |
| d |
Max. digging height |
3,690 |
| e |
Max. dumping clearance |
2,620 |
| f |
Min. dumping clearance |
1,010 |
| g |
Max. vertical wall digging depth |
1,800 |
| h |
Min. swing radius (at boom swing) |
1,540 (1,390) |
