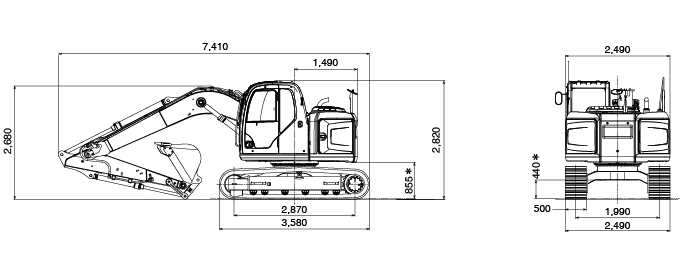

Unit : mm
* Without including height of shoe lug.
| Model Name |
SK135SR |
| Machine Type |
SK135SR-2 |
| Model |
MITSUBISHI D04FR-74kW |
| Type |
Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler |
| Rated power output |
kW/min-1 |
74 /2,000 (ISO14396:2002)*
69.2 /2,000 (ISO9249:2007)
|
*ISO14396 meets EU regulation.
| Hydraulic oil tank |
L |
98.5 L tank oil level / 140 L hydraulic system |
| Pump |
Type |
Two variable displacement pumps + 1 gear pump |
| Max.Discharge flow |
L/min |
2 x 130 , 1 x 20 |
| Swing speed |
min-1{rpm} |
11.5 |
| Travel Speed |
km/h |
5.6 / 3.4 |
| Drawbar pulling force |
kN{kgf} |
139 kN {14,200 kgf} (ISO 7464) |
| Gradeability |
% ( º ) |
70 {35} |
| Travel shoes |
44 each side |
| Travel motors |
2 x axial-piston,two-step motors |
| Type |
Backhoe bucket |
| Narrow
| Normal
| Wide |
| Bucket capacity |
ISO heaped |
m3 |
0.38 |
0.50 |
0.70 |
| Opening Width |
With side cutters |
mm |
800 |
1,000 |
1,100 |
| Without side cutter |
mm |
700 |
900 |
1,020 |
| Operating Weight |
kg |
13,800 |

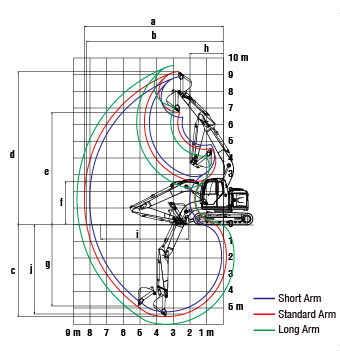

Unit : m
| Boom |
4.68m |
| Arm |
Short 2.09 m |
Standard 2.38 m |
Long 2.84 m |
| a |
Max. digging reach |
8.04 |
8.34 |
8.78 |
| b |
Max. digging reach at ground level |
7.89 |
8.19 |
8.64 |
| c |
Max. digging depth |
5.23 |
5.52 |
5.98 |
| d |
Max. digging height |
8.92 |
9.19 |
9.56 |
| e |
Max. dumping clearance |
6.47 |
6.74 |
7.11 |
| f |
Min. dumping clearance |
2.9 |
2.58 |
2.22 |
| g |
Max. vertical wall digging depth |
4.48 |
4.89 |
5.44 |
| h |
Min. swing radius |
2.07 |
2.00 |
2.40 |
| i |
Horizontal digging stroke at ground level |
3.59 |
4.21 |
4.70 |
| j |
Digging depth for 2.4m(8')flat bottom |
4.96 |
5.29 |
5.79 |
| Bucket capacity ISO heaped |
m3 |
0.5 |
0.45 |
0.38 |
| Digging Force (ISO 6015) |
Unit: kN{kgf} |
| Arm length |
Standard 2.38 m |
| Bucket digging force |
90.1 {9,190} |
| Arm crowding force |
64.4 {6,570} |
