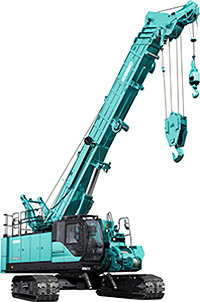

TK750G

Main Specifications (Model: TK750G)

Crane Boom

Max. Lifting Capacity 75 t × 3.0 m
Max. Length 30.1 m

Winch (Main / Aux. / Third*)

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull 68.7 kN {7.0 tf}
Wire Rope Diameter 22 mm
Wire Rope Length 170m (Main), 75m (Aux.), 170m (Third*)
Breake Type (Free fall) Wet-type multiple disc brake (Standard)

* Third winch is optional

Working Speed

Swing Speed 2.5 min-1 {rpm}
Travel Speed 1.7 / 1.2 km/h
Boom Telescoping Speed 125 / 20.1 sec/m

Power Plant

Model Daimler OM936LA (MTU 6R1000)
Engine Output 254 kW / 2,000 min-1
Fuel Tank Capacity 400 liters

Hydraulic System

Main Pumps 4 pumps (2 variable plunger pumps + 2 gear pumps) + 4 pumps (2 variable plunger pumps + 2 gear pumps)
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 860 liters

Self-Removal Device

Counterweight / Crawler (Option)

Weight

Operating Weight 70.6 t
Ground Pressure 83.9 kPa {0.86 kgf/cm2}
Counterweight 17,200 kg
Transport Weight 27,400 kg (30,100 kg*)

* With optional parts and attachments

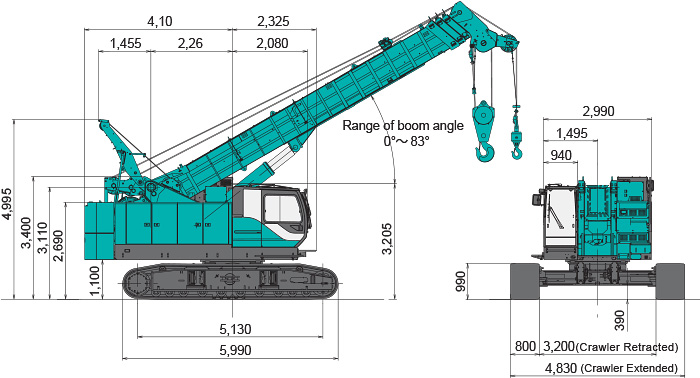

General Dimensions

Unit : mm

TK750S General Dimensions

Without third drum, counterweight self-removal device extended
