Other Area (All Line Up) CK90UR

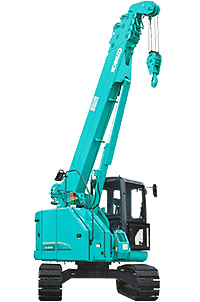

CK90UR

Main Specifications (Model: CK90UR)

Crane Boom

Max. Lifting Capacity 4.9 t × 2.1 m (Pick & Carry:2.0×2.5)
Max. Length 14.77 m

Winch

Line Speed (unloaded) 104/150 m/min (4th layer)
Wire Rope Length (standard) Φ 10mm × 113m

Working Speed

Swing Speed 2.1 min-1 {rpm}
Travel Speed (low / high) 2.6 / 5.3 km/h

Power Plant

Model Isuzu 4LE2XDPC
Engine Output 41 kW / 2,000 min-1 {56 PS / 2,000 rpm}
Fuel Tank Capacity 95 liters

Hydraulic System

Hydraulic Tank Capacity 83 liters (Tank 50 liters)

Weight

Operating Weight 9,700 kg
Ground Pressure 46.2 kPa {0.47 kgf/cm2}

* With optional parts and attachments

General Dimensions

Unit : mm

CK90UR General Dimensions
