Other Area (All Line Up) CKS800

CKS800

Main Specifications (Model: CKS800)

Crane Boom

Max. Lifting Capacity 80 t × 3.0 m
Max. Length 54.9 m

Fixed Jib

Max. Lifting Capacity 6.6 t × 20.0 m
Max. Combination 42.7 m + 18.3 m, 45.7 m + 12.2 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull
(Single Line)
78.5 kN {8.0 tf}
Wire Rope Diameter 22 mm × 220 m
Wire Rope Length 220 m (Main), 130 m (Aux.)
Brake Type Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 4.0 min-1 {rpm}
Travel Speed 1.7 / 1.2 km/h

Power Plant

Model HINO J08E-VM
Engine Output 213 kW / 2,100 min-1
Fuel Tank Capacity 400 liters

Hydraulic System

Main Pumps 3 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 440 liters

Self-Removal Device

Counterweight/crawler self-removal device (Option)

Weight

Operating Weight* 75.1 t
Ground Pressure 84.7 kPa
Counterweight 27,200 kg
Transport Weight** 39,850 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* Including upper and lower machine, 27.2 ton counterweight,6.5 ton carbody weight,basic room,hook,and other accessories.
** Base machine with boom base, gantry, crawlers, and wire ropes (front/boom hoist)

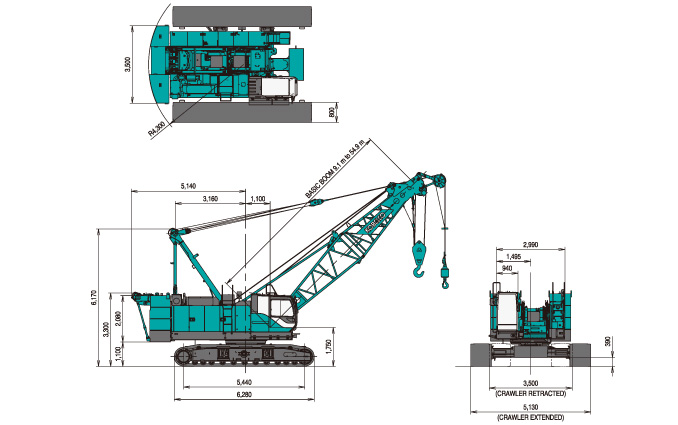

General Dimensions

CSK800

Unit : mm
