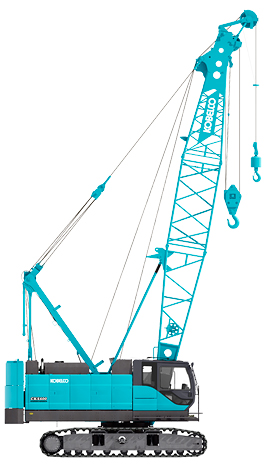

CKS600

Main Specifications (Model: CKS600)

Crane Boom

Max. Lifting Capacity* 60 t × 3.0 m
Max. Length 51.8 m

Fixed Jib

Max. Lifting Capacity 7.0 t × 12.0 m
Max. Combination 39.6 m + 18.3 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull
(Single Line)
78.5 kN {8.0 tf}
Wire Rope Diameter 22 mm × 180 m
Wire Rope Length 180 m (Main), 130 m (Aux.)
Brake Type Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 4.5 min-1 {rpm}
Travel Speed 2.3 / 1.5 km/h

Power Plant

Model HINO J08E-VM
Engine Output 213 kW / 2,100 min-1
Fuel Tank Capacity 400 liters

Hydraulic System

Main Pumps 3 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 440 liters

Weight

Operating Weight** 46.1 t
Ground Pressure 63.1 kPa
Counterweight 13,030 kg
Transport Weight*** 31,430 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* c/w = 11.0 t
** Including upper and lower machine, 13.0 ton counterweight, basic boom, hook, and other accessories.
*** Base machine with boom base, gantry, crawlers, and wire ropes (front/boom hoist)

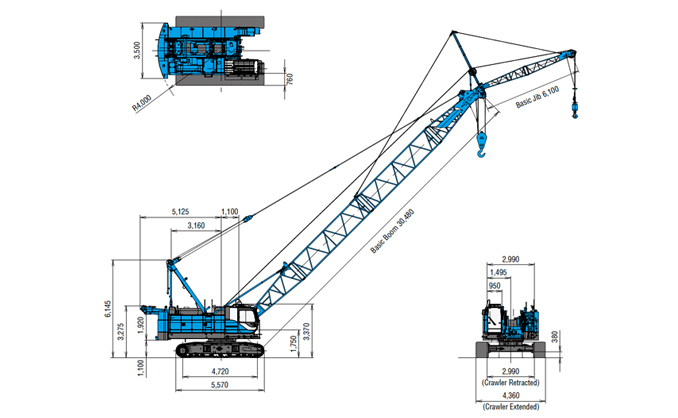

General Dimensions

CKS600

Unit : mm
