| Max. Lifting Capacity | 100 t ★x 3.3 m |
|---|---|
| Max. Length | 61.0 m |
| Max. Lifting Capacity | 10.9 t × 18.0 m |
|---|---|
| Max. Combination | 51.8 m + 18.3 m |
| Max. Line Speed (1st layer) |
120 m/min |
|---|---|
| Rated Line Pull (Single Line) |
112 kN {11.4 tf} |
| Wire Rope Diameter | 26 mm |
| Wire Rope Length | 240 m (Main), 165 m (Aux) |
| Brake Type (free fall) |
Wet-type multiple disc brake (Optional) |
| Swing Speed | 4.0 min-1 {rpm} |
|---|---|
| Travel Speed | 1.7 / 1.1 km/h |
| Model | HINO J08E-VM |
|---|---|
| Engine Output | 213 kW / 2,100 min-1 |
| Fuel Tank Capacity | 400 L |
| Main Pumps | 3 variable displacement |
|---|---|
| Max. Pressure | 31.9 MPa {325 kgf/cm2} |
| Oil Quantity (at the reference level) | 380 L |
| Counterweight/self-removal device (Option) |
| Operating Weight | 89.9 t *1 |
|---|---|
| Ground Pressure | 101.3 kPa {1.03 kgf/cm 2} |
| Counterweight | 31,100 kg |
| Transport Weight** | 40,415 kg *2 |
Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
*1 Including upper and lower machine, 31.1 ton counterweight, 15.0 ton carbody weight, basic boom, hook, and other accessories.
*2 Base machine with boom base, gantry, crawlers, and wire ropes (front/boom hoist)
★ The value are theoretical result.

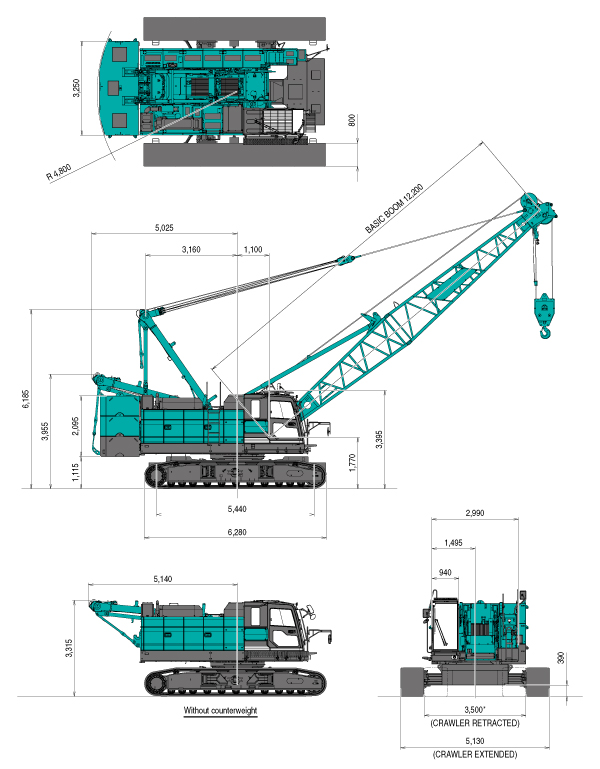

Unit : mm
