BMS1000

Main Specifications (Model: BMS1000)

Crane Boom

Max. Lifting Capacity 100 t × 3.8 m
Max. Length 62.6 m

Main & Aux. Winch

Max. Line Speed 110 m/min (1st layer)
Rated Line Pull
(Single Line)
132 kN {13.5 tf}
Wire Rope Diameter 28 mm × 200 m
Wire Rope Length 175 m (Main), 130 m (Aux.)
Brake Type Wet-type multiple disc brake (Optional)

Working Speed

Swing Speed 3.2 min-1 {rpm}
Travel Speed 1.4 / 1.0 km/h

Power Plant

Model HINO P11C-VH
Engine Output 271 kW / 1,850 min-1
Fuel Tank Capacity 400 L

Hydraulic System

Main Pumps 3 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Oil Quantity (at the reference level) 375 L

Weight

Operating Weight* 107 t
Ground Pressure 108.8 kPa
Counterweight 37,140 kg
Transport Weight** 31,000 kg

Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
* Including upper and lower machine, 37.1 ton counterweight, 14.5 ton carbody weight, basic boom, hook, and other accessories.
** Base machine with boom base, gantry, and wire ropes (front/rear/third/boom hoist)

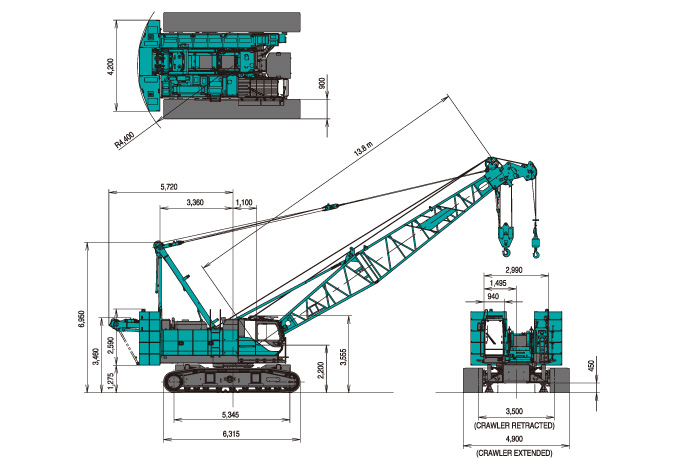

General Dimensions

BMS1000

Unit : mm
