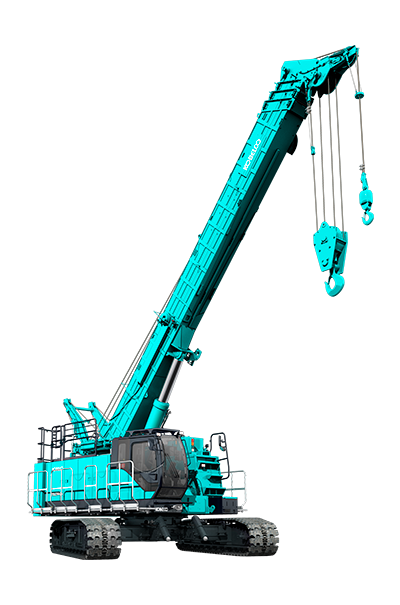

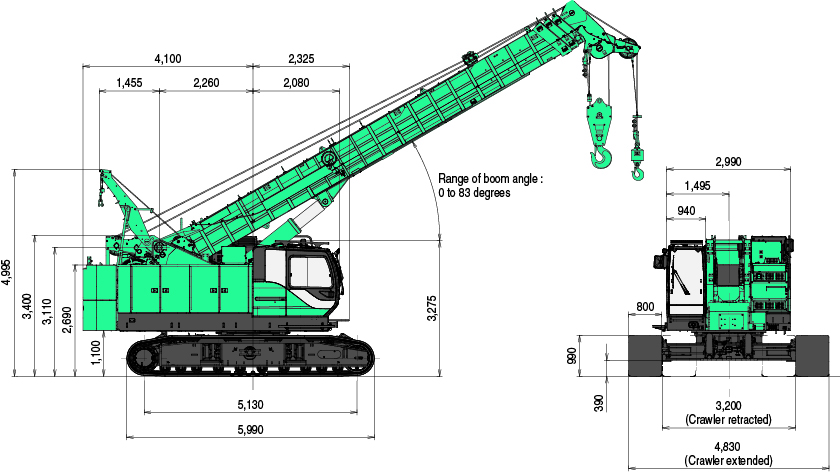

| Max. Rated Load |
11.6 m boom |
75.0 t x 2.6 m (11-lines) |
| 19.4 m boom |
35.0 t x 4.5 m (6-lines) |
| 23.3 m boom |
28.0 t x 6.0 m (4-lines) |
| 27.2 m boom |
20.0 t x 8.0 m (4-lines) |
| 32.5 m boom |
18.5 t x 8.5 m (4-lines) |
| 35.0 m boom |
16.3 t x 8.5 m (4-lines) |
| Aux. sheave (Max.) |
7.0 t (1-line) |
| Main Boom Length |
11.6 m to 35.0 m |
| Main Hook Max. Hoist Height |
35.0 m |
| Main Hook Max. Operating Radius |
32.7 m |
| Line Speed (1st layer) |
110 m/min |
| Rated Line Pull (Single line) |
68.6 kN {7.0 tf} |
| Max. Line Pull (Referential performance)*1 |
153.1 kN {15.6 tf} |
| Wire Rope Diameter |
22 mm |
| Wire Rope Length |
205 m (Main), 90 m (Aux.) |
| Brake Type (Free fall) |
Wet-type multiple disc brake |
| Swing Speed |
2.5 min-1 {2.5 rpm} |
| Travel Speed |
1.6 / 1.1 (High / Low select)km/h |
| Boom Telescoping Speed |
135 sec / 23.4 m |
| Boom Raising Speed |
64 sec / 0 to 83 degrees |
| Model |
Mercedes-Benz E9H01(Daimler OM936LA) |
| Engine Output |
254 kW / 2,000 min-1 |
| Fuel Tank |
400 L |
| AdBlue® Tank Usable Volume |
40 L |
| Main Pumps |
4 pumps (2 variable plunger pumps + 2 gear pumps) + 4 pumps (2 variable plunger pumps + 2 gear pumps) |
| Max. Pressure |
31.9 MPa {325 kgf/cm2} |
| Oil Quantity (at the reference level) |
791 L |
| Operating Weight |
71.6 t |
| Ground Pressure |
85.5 kPa {0.87 kgf/cm2} |
| Counterweight |
17,200 kg |
| Transport Weight |
54,400 kg (58,700 kg*2) |
Units are SI units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
*1 Max. line pull is not based on wire rope strength.
*2 In the case of with optional parts / attachments.
