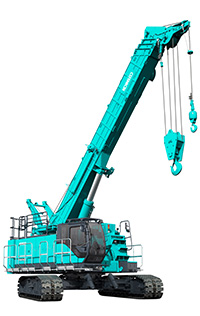

Europe TKE750G


Main Specifications (Model: TK750G-2)

Crane Performance

Max. Lifting Capacity 10.0 m boom 75.0 t x 3.0 m (11-lines)
16.7 m boom 36.0 t x 4.5 m (6-lines)
23.4 m boom 29.0 t x 6.0 m (5-lines)
30.1 m boom 18.5 t x 8.0 m (4-lines)
Aux. Sheave (Max.) 7.0 t (1-line)
Main Boom Length 10.0 m to 30.1 m
Main Hook Max. Hoist Height 30.4 m
Main Hook Max. Operating Radius 27.8 m

Winch (Main / Aux.)

Max. Line Speed (1st layer) 110 m/min
Rated Line Pull (Single line) 68.6 kN {7.0 tf}
Max. Line Pull (Referential performance)*2 153.1 kN {15.6 tf}
Wire Rope Diameter 22 mm
Wire Rope Length 170m (Main), 75m (Aux.)
Brake Type (Free fall) Wet-type multiple disc brake

Winch (Third [without free fall]*1)

Max. Line Speed (1st layer) 87 m/min
Rated Line Pull (Single line) 52.0 kN {5.3 tf}
Max. Line Pull (Referential performance)*2 107.0 kN {10.9 tf}
Wire Rope Diameter 18 mm
Wire Rope Length 170 m

Working Speed

Swing Speed 2.5 min-1 {rpm}
Travel Speed 1.6 / 1.1 km/h (high / low select)
Boom Telescoping Speed 125 / 20.1 sec/m
Boom Raising Speed 64 sec / 0 to 83 degrees

Power Plant

Model Mercedes-Benz E9H01 (Daimler OM936LA)
Engine Output 254 kW / 2,000 min-1
Fuel Tank 400 L
AdBlue® Tank Usable Volume 40 L

Hydraulic System

Main Pumps 4 pumps (2 variable plunger pumps + 2 gear pumps) + 4 pumps (2 variable plunger pumps + 2 gear pumps)
Max. Pressure 31.9 MPa {325 kgf/cm2}
Oil Quantity (at the reference level) 791 L

Self-Removal Device (Option)



Operating Weight 70.2 t
Ground Pressure 83.8 kPa {0.86 kgf/cm2}
Counterweight 17,200 kg
Transport Weight 52,900 kg*3 (55,800 kg*4)

Hydraulic Outlet (Option)

Output Horsepower Max. Flow 145 kW (200 ps)
Max. Pressure 140 kW (190 ps)
Max. Operating Pressure Max. Flow 21.0 MPa (215 kgf/cm2)
Max. Pressure 30.0 MPa (305 kgf/cm2)
Max. Supply Flow Rate Max. Flow 425 L/min
Max. Pressure 280 L/min

Units are Sl units. { } indicates conventional units.
Line speeds in table are for light loads. Line speed varies with load.
*1 Third winch is optional.
*2 Max. line pull is not based on wire rope strength.
*3 Base machine with hook, without counterweight
*4 With third winch and other optional parts / attachments.

General Dimensions

Unit : mm

TKE750G General Dimensions
