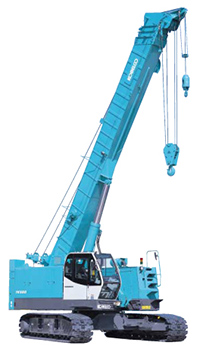

Southeast Asia, the Middle East, Africa, Russia, Taiwan TK750S

TK750S

Main Specifications (Model: TK750S)

Crane Boom

Max. Lifting Capacity 75 t × 3.0 m
Max. Length 30.1 m

Main & Aux. Winch

Max. Line Speed 120 m/min (1st layer)
Rated Line Pull 68.7 kN {7.0 tf}
Boom Telescoping Speed 125 sec / 20.1 m
Wire Rope Length 64 sec / 0 to 83 degree
Wire Rope 22 mm

Working Speed

Swing Speed 2.5 min-1 {rpm}
Travel Speed 1.9 / 1.2 km/h

Power Plant

Model Mitsubishi 6D24-TLE2A
Engine Output 235 kW / 2,000 min-1 {rpm}
Fuel Tank Capacity 400 liters

Hydraulic System

Hydraulic Tank Capacity 860 liters

Weight

Operating Weight Approx. 69.2 t
Ground Pressure 82.7 kPa {0.84 kgf/cm2}

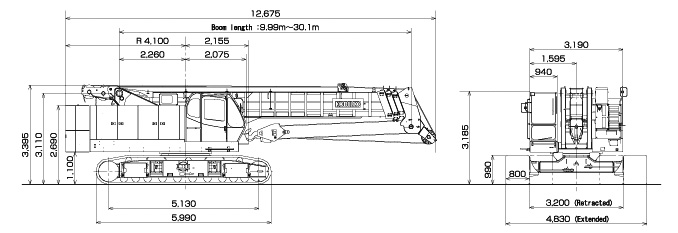

General Dimensions

TK750S

Unit : mm

Catalog Download

TK750S Colour Brochure

Color catalog

PDF format(1.1MB)

TK750S specifications

Color catalog

PDF format(1.9MB)

Get Adobe Acrobat Reader

Download free Adobe Acrobat Reader to view PDFs in this website.

This page may contain attachments and optional equipment that are not available in your area. And it may contain photographs of machines with specifications that differ from those of machines sold in your areas.Please consult your nearest Kobelco distributor for those items you require.Due to our policy of continuous product improvements all designs and specifications are subject to change without advance notice.
