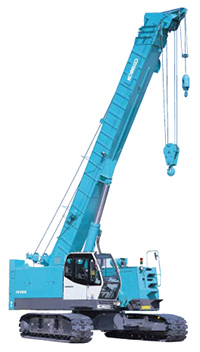

Southeast Asia, the Middle East, Africa, Russia, Taiwan TK550

TK550

Main Specifications (Model: TK550)

Crane Boom

Max. Lifting Capacity 55 × 3.0 m
Max. Length 30.1 m

Main & Aux. Winch

Max. Line Speed 125 m/min (4th layer)
Rated Line Pull 44.1 kN {4.5 tf}
Boom Telescoping Speed 120 sec / 20.1 m
Wire Rope Length 64 sec / 0 to 82.5 degree
Wire Rope 18 mm

Working Speed

Swing Speed 2.3 min-1 {rpm}
Travel Speed 1.9 / 1.2 km/h

Power Plant

Model Mitsubishi 6D16-TLE1
Engine Output 147 kW / 2,000 min-1
Fuel Tank Capacity 270 L

Hydraulic System

Hydraulic Tank Capacity 610 L

Weight

Operating Weight Approx. 49.98 t
Ground Pressure 68.3 kPa {0.70 kgf/cm2}

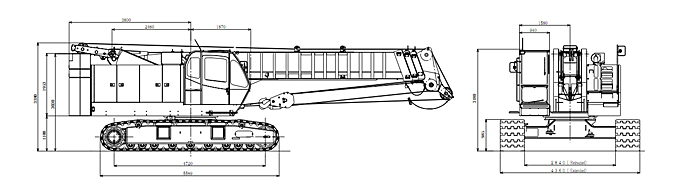

General Dimensions

TK550

Unit : mm

Catalog Download

TK550 Colour Brochure

Color catalog

PDF format(1.2MB)

TK550 specifications

Spec catalog

PDF format(2.6MB)

Get Adobe Acrobat Reader

Download free Adobe Acrobat Reader to view PDFs in this website.

This page may contain attachments and optional equipment that are not available in your area. And it may contain photographs of machines with specifications that differ from those of machines sold in your areas.Please consult your nearest Kobelco distributor for those items you require.Due to our policy of continuous product improvements all designs and specifications are subject to change without advance notice.
