Unit : mm

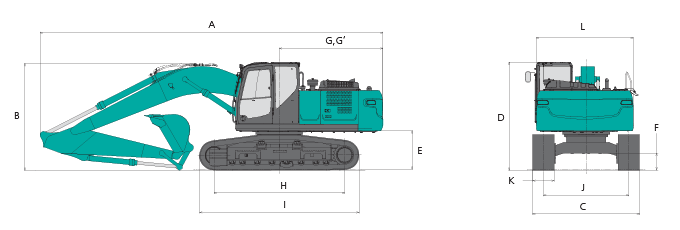

| Arm length | 2.4m | 2.94 m | |
|---|---|---|---|
| A | Overall length | 9,680 | 9,600 |
| B | Overall height (to top of boom) | 3,220 | 2,980 |
| C | Overall width | 2,990 | |
| D | Overall height (to top of cab) | 3,020 | |
| E | Ground clearance of rear end* | 1,070 | |
| F | Ground clearance* | 455 | |
| G | Tail swing radius | 2,910 | |
| G' | Distance from center of swing to rear end | 2,900 | |
| H | Tumbler distance | 3,660 | |
| I | Overall length of crawler | 4,460 | |
| J | Track gauge | 2,390 | |
| K | Shoe width | 600 | |
| L | Overall width of upperstructure | 2,710 | |
* Without including height of shoe lug
| Model Name | SK220XDLC |
|---|---|
| Machine Type | SK220XDLC-10 |
| Model | HINO J05E | |
|---|---|---|
| Type | Four-stroke liquid-cooled direct injection diesel turbo charged with intercooler |
|
| Rated power output | kW/min-1 | 114 / 2,000 (ISO 9249) 118 / 2,000 (ISO 14396) |
| Hydraulic oil tank | L | 140 L tank oil level / 244 L hydraulic system | |
|---|---|---|---|
| Pump | Type | Two Variable displacement piston pumps + one gear pump |
|
| Max.Discharge flow | L/min | 2 x 220 , 1 x 20 | |
| Swing speed | min-1{rpm} | 13.3 |
|---|
| Travel Speed | km/h | 6.0 / 3.6 |
|---|---|---|
| Drawbar pulling force | kN | 227 (SAE) |
| Gradeability | % ( º ) | 70 (35) |
| Travel motors | 2 × axial-piston, two-step motors | |
| Fuel Tank | L | 320 |
|---|
| Bucket capacity ISO heaped | m3 | 0.8 - 0.93 |
|---|---|---|
| Bucket cylinder | mm | 120 × 1,080 |
| Operating Weight | kg | 22,200 - 22,700 |
|---|
Unit : m

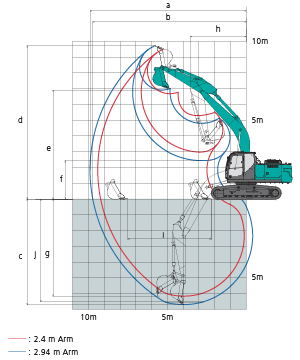

| Range / Arm | 2.4 m | 2.94 m | ||
|---|---|---|---|---|
| a | Max. digging reach | 9.42 | 9.9 | |
| b | Max. digging reach at ground level | 9.24 | 9.73 | |
| c | Max. digging depth | 6.16 | 6.7 | |
| d | Max. digging height | 9.51 | 9.72 | |
| e | Max. dumping clearance | 6.68 | 6.91 | |
| f | Min. dumping clearance | 2.98 | 2.43 | |
| g | Max. vertical wall digging depth | 5.57 | 6.1 | |
| h | Min. swing radius | 3.56 | 3.55 | |
| i | Horizontal digging stroke at ground level | 4.08 | 5.27 | |
| j | Digging depth for 2.4m(8')flat bottom | 5.95 | 6.52 | |
| Bucket capacity ISO heaped | m3 | 0.93 | 0.8 | |
| Digging Force (ISO 6015) | Unit: kN |
| Arm length | 2.4 m | 2.94 m |
|---|---|---|
| Bucket digging force | 143 157* |
143 157* |
| Arm crowding force | 121 133* |
102 112* |
* Power Boost engaged.
