| Model |
YANMAR-4TNV88-B |
| Type |
Water cooled, 4-cycle, 4-cylinder,direct injection, diesel engine |
| Rated power output |
kW/min-1 |
29.6 / 2,400 (ISO 14396) |
| Hydraulic Oil Tank (system) |
L |
27.9 (57.7) |
| Pump |
Two variable displacement pumps + One gear pump |
| Max.Discharge Flow |
L/min |
2 x 49.9, 1 x 33.8 |
| Relief Valve Setting |
MPa |
23.0 |
| Swing speed |
min-1 |
8.8 |
| Swing motors |
Axial piston motor |
| Travel Speed |
km/h |
(Rubber) 4.0 / 2.3 (Steel) 3.7 / 2.1 |
| Track shoe |
mm |
400 |
| Track shoes |
Rubber / Steel |
| Travel motors |
2 x axial-piston, two-step motors |
| Width x Height |
mm |
1,960 x 345 |
| Bucket capacity |
m3 |
0.18 |
| Bucket Width |
mm |
700(with side cutter) |
| Machine Mass |
kg |
cab |
(Rubber) 4,560 (Steel) 4,700 |
| canopy |
(Rubber) 4,440 (Steel) 4,590 |
| Ground Pressure |
kPa |
cab |
(Rubber) 26.1 (Steel) 27.7 |
| canopy |
(Rubber) 25.4 (Steel) 27.0 |

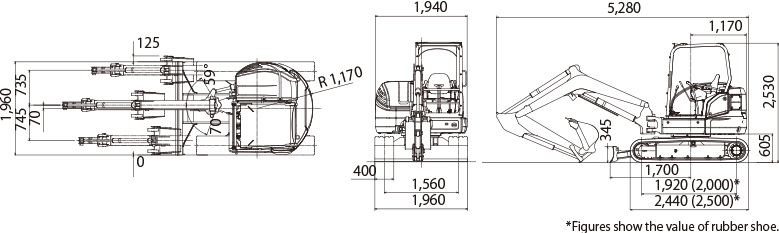

Unit : mm
| |
Cab |
Canopy |
| Arm length |
1.55 m |
| a |
Max. digging reach |
5,850 |
| b |
Max. digging reach at ground level |
5,700 |
| c |
Max. digging depth |
3,440 |
| d |
Max. digging height |
5,660 |
5,750 |
| e |
Max. dumping clearance |
4,080 |
4,160 |
| f |
Min. dumping clearance |
1,510 |
1,560 |
| g |
Max. vertical wall digging depth |
2,820 |
| h |
Min. swing radius (at boom swing) |
2,250
(1,850) |
2,210
(1,810) |
| i |
Horizontal digging stroke at ground level |
2,650 |
| j |
Dozer blade (height/depth) |
465 / 335 |
