Southeast Asia SK380XDLC (For Myanmar)

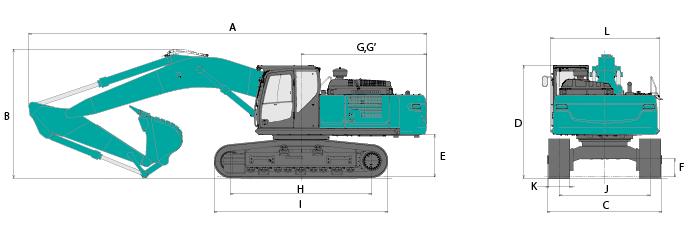

Unit : mm

Arm length Short 2.6m
A Overall length 11,380
B Overall height (to top of boom) 3,690
C Overall width 3,260
D Overall height (to top of cab) 3,230
E Ground clearance of rear end* 1,210
F Ground clearance* 515
G Tail swing radius 3,600
G' Distance from center of swing to rear end 3,600
H Tumbler distance 4,050
I Overall length of crawler 4,980
J Track gauge 2,590
K Shoe width 600
L Overall width of upperstructure 3,120

* Without including height of shoe

Main Specifications

Model Name SK380XDLC
Machine Type SK380XDLC-10


Model HINO J08E
Type Direct injection, water-cooled, 4-cycle, 6-cylinder diesel engine with intercooler turbo-charger
Rated power output kW/min-1 188 / 2,100 (ISO 9249)
200 / 2,100 (ISO 14396)

Hydraulic System

Hydraulic capacity L System 410 / Tank level 245
Pump Type Two Variable displacement piston pumps + one gear pump
Max.Discharge flow L/min 2 x 294 , 1 x 21

Swing System

Swing speed min-1{rpm} 10

Travel System

Travel Speed km/h 5.6 / 3.3
Drawbar pulling force kN 331 (ISO 7464)
Gradeability % ( º ) 70 {35}
Track shoes Triple grouser shoe
Track shoe mm 600 / 800
Travel motors Variable displacement piston pump

Refilling Capacities & Lubrications

Fuel Tank L 503


Bucket capacity ISO heaped m3 1.6
ISO struck m3 1.2
Bucket Opening Width With side cutters mm 1,470
Without side cutters mm 1,470

Operating Weight

Operating Weight kg 38,500 - 39,100

Working Ranges


Unit : m

Boom length 6.50m
Range / Arm Short 2.6 m
a Max. digging reach 10.61
b Max. digging reach at ground level 10.4
c Max. digging depth 6.84
d Max. digging height 10.23
e Max. dumping clearance 7.07
f Min. dumping clearance 3.34
g Max. vertical wall digging depth 5.7
h Min. swing radius 4.46
i Horizontal digging stroke at ground level 4.21
j Digging depth for 2.4m(8')flat bottom 6.65
Bucket capacity ISO heaped m3 1.6
Digging Force (ISO 6015) Unit: kN
Arm length Short 2.6 m
Bucket digging force 229
Arm crowding force 207

* Power Boost engaged.
