Unit : mm
Arm length | Short 2.50m |
Standard 2.98m |
||
---|---|---|---|---|
A | Overall length | 10,270 | 10,210 | |
B | Overall height (to top of boom) | 3,340 | 3,180 | |
C | Overall width of crawler | SK250 | 2,990 | |
SK260LC | 3,190 | |||
D | Overall height (to top of cab) | 3,040 | ||
E | Ground clearance of rear end* | 1,090 | ||
F | Ground clearance* | 460 | ||
G | Tail swing radius | 3,100 | ||
G' | Distance from center of swing to rear end | 3,070 | ||
H | Tumbler distance | SK250 | 3,470 | |
SK260LC | 3,850 | |||
I | Overall length of crawler | SK250 | 4,260 | |
SK260LC | 4,640 | |||
J | Track gauge | SK250 | 2,390 | |
SK260LC | 2,590 | |||
K | Shoe width | 600 | ||
L | Overall width of upperstructure | 2,980 |
* Without including height of shoe lug
Model Name | SK250 | SK260LC |
---|---|---|
Machine Type | SK250-10 | SK260LC-10 |
Model | HINO J05ETB-KSSH | |
---|---|---|
Type | Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler | |
Rated power output | kW/min-1 | 132 / 2,100 (ISO 9249) 137 / 2,100 (ISO 14396) |
Hydraulic capacity | L | System 273 / Tank level 165 | |
---|---|---|---|
Pump | Type | Two variable displacement piston pumps + one gear pump | |
Max.Discharge flow | L/min | 2 x 245 , 1 x 21 |
Swing speed | min-1{rpm} | 10.8 |
---|
Travel Speed | km/h | 6.1 / 3.8 |
---|---|---|
Drawbar pulling force | kN | 244 (ISO 7464) |
Gradeability | % ( º ) | 70 {35} |
Track shoes | Triple grouser shoes | |
Track shoe | mm | 600 / 700 / 800 |
Travel motors | Variable displacement piston pump |
Fuel Tank | L | 403 |
---|
Bucket capacity | ISO heaped | m3 | 1.00 | 1.20 | 1.4 |
---|---|---|---|---|---|
Struck | m3 | 0.76 | 0.84 | 1.0 | |
Bucket Opening Width | With side cutters | mm | 1,270 | 1,440 | - |
Without side cutters | mm | 1,180 | 1,340 | 1,510 |
Operating Weight | kg | 24,900 - 25,400 | 25,400 - 26,000 |
---|

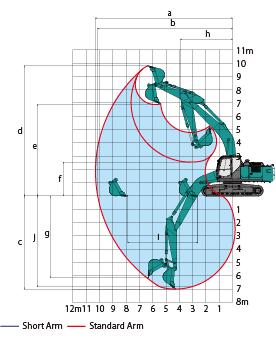

Unit : m
Boom length | 6.02m | |||
---|---|---|---|---|
Range / Arm | Short 2.50 m |
Standard 2.98 m |
||
a | Max. digging reach | 9.89 | 10.3 | |
b | Max. digging reach at ground level | 9.72 | 10.14 | |
c | Max. digging depth | 6.52 | 7.00 | |
d | Max. digging height | 9.65 | 9.79 | |
e | Max. dumping clearance | 6.72 | 6.88 | |
f | Min. dumping clearance | 3.03 | 2.55 | |
g | Max. vertical wall digging depth | 5.82 | 6.15 | |
h | Min. swing radius | 3.91 | 3.91 | |
i | Horizontal digging stroke at ground level | 4.20 | 5.26 | |
j | Digging depth for 2.4m(8')flat bottom | 6.32 | 6.82 | |
Bucket capacity ISO heaped | m3 | 1.2 | 1.0 |
Digging Force (ISO 60159) | Unit: kN{tf} |
Arm length | Short 2.50 m | Standard 2.98 m |
---|---|---|
Bucket digging force | 170 187* |
170 187* |
Arm crowding force | 142 156* |
122 134* |
* Power Boost engaged.
