Unit : mm
| Arm length |
2.38m |
2.84m |
| A |
Overall length |
SK135SR |
7,430/8,070** |
7,440/8,080** |
| SK135SRLC |
7,510/8,070** |
7,530/8,070** |
| B |
Overall height (to top of boom) |
2,740 |
3,140 |
| C |
Overall width (500 mm shoe) |
2,490 |
| D |
Overall height (to top of cab) |
2,810 |
| E |
Ground clearance of rear end* |
870* |
| F |
Ground clearance* {with dozer**} |
400* {400* **} |
| G |
Tail swing radius {additional counterweight} |
1,490 |
| G' |
Distance from centre of swing to rear end
{additional counterweight} |
1,490 |
| H |
Tumbler distance |
SK135SR |
2,870 |
| SK135SRLC |
3,040 |
| I |
Overall length of crawler |
SK135SR |
3,580 |
| SK135SRLC |
3,750 |
| J |
Track gauge |
1,990 |
| K |
Shoe width |
500 |
| L |
Overall width of upperstructure |
2,480 |
*Without including height of shoe lug **With Dozer
| Model Name |
SK135SR |
SK135SRLC |
| Machine Type |
SK135SR-7 |
SK135SRLC-7 |
| Model |
ISUZU MOTORS LIMITED 4JJ1XDJA |
| Type |
Four cycle, water cooled, overhead camshaft, vertical in-line,direct injection type, with turbocharger |
| Rated power output |
kW/min-1 |
65.4 / 2,000 (ISO 9249: with fan)
73.0 / 2,000 (ISO 14396: without fan) |
| Hydraulic Oil Tank (system) |
L |
89.9(176) |
| Pump |
Type |
Two variable displacement axial piston pumps + one gear pump |
| Max.Discharge flow |
L/min |
2 x 130, 1 x 20 |
| Travel Speed (high/low) |
km/h |
3.4 / 5.6 |
| Drawbar Pulling Force |
kN (SAE) |
141 |
| Gradeability |
% ( º ) |
70 (35) |
| Travel motors |
Variable displacement axial piston, two-speed motors |
| Bucket capacity ISO heaped |
m3 |
0.24 - 0.57 |
| Operating Weight |
kg |
14,000 - 15,500 |

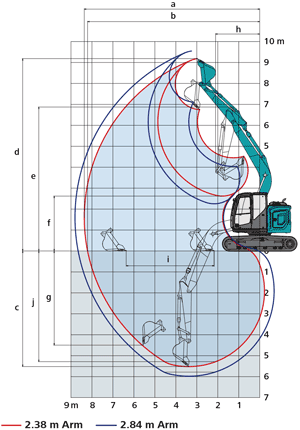

Unit : m
| Range / Arm |
2.38m |
2.84m |
| a |
Max. digging reach |
8.37 |
8.81 |
| b |
Max. digging reach at ground level |
8.21 |
8.66 |
| c |
Max. digging depth |
5.52 |
5.98 |
| d |
Max. digging height |
9.18 |
9.55 |
| e |
Max. dumping clearance |
6.75 |
7.11 |
| f |
Min. dumping clearance |
2.62 |
2.25 |
| g |
Max. vertical wall digging depth |
4.50 |
4.95 |
| h |
Min. swing radius |
2.13 |
2.52 |
| i |
Horizontal digging stroke at ground level |
4.19 |
4.67 |
| j |
Digging depth for 2.4m(8')flat bottom |
5.29 |
5.78 |
| Bucket capacity ISO heaped |
m3 |
0.50 |
0.38 |
| Digging Force (ISO 6015) |
Unit: kN |
| Arm length |
2.38m |
2.84m |
| Bucket digging force |
105.4 |
| Arm crowding force |
64.0 |
58.0 |
